Tungsten Alloy Stockist and Exporter

Tungsten (W) is a grey Metal which is Solid in Room Temperature. It has Atomic No. 74. Density of tungsten in pure state is as high as gold. It has the highest melting point after Carbon (C). With all these properties, the Tungsten metal can withstand high temperatures and smelting and in addition has a very low coefficient of thermal expansion.

It is used in high density Application & Radiation Shielding. It is available in the Purest Form upto 99.9 % Pure Alloy & it is also combined with Copper & Nickel to Make Copper-Tungsten Alloy & Nickel-Tungsten Alloy Respectively. We source this materials form world best Manufacturers with Best Quality.

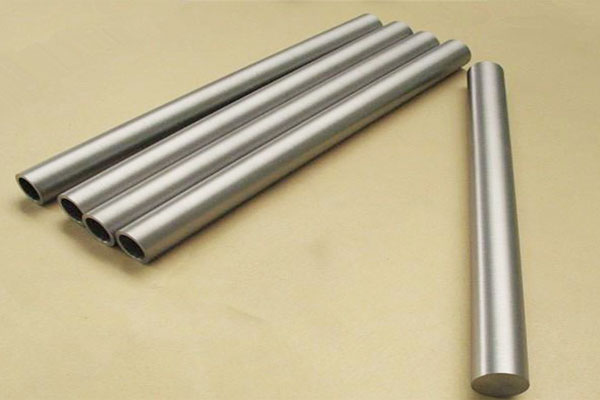

Available Forms :Rods, Bars, Plates, Flat, Sheets, Etc.

Specifications of Tungsten Alloy :

Standards :	AMS 7898 / 7899
Tungsten Chemistry :	Minimum % 99.95
Hardness :	DPH 300
Tungsten Physical Properties:	Tensile Strength :KSI (Mpa)-RT 250 (1725) Elongation :% in 1.0".
Features :	Resistant to corrosion and heat Can be used in high temperature situations such as in the filaments of the bulbs Excellent thermal and electrical conductivity Known for its hardness and density and apt for making heavy metal alloys It has the highest melting point (3,422 °C, 6,192 °F), lowest vapor pressure and the highest strength.
Applications :	High temperature furnace components glass to metal seals heavy metal alloys medical devices welding electrodes.

Chemical Composition of Tungsten Alloy:

W (>%)	Chemical Content (< %)
99.999 PT74-TBSW1	Fe	Ca	Be	Sn	Al	Ni	Zn	Sb	Pt	K	Ta	Na
	0.0001	0.00005	0.000005	0.000005	0.00005	0.00001	0.00005	0.00005	0.00003	0.000005	0.0001	0.00005
	Cr	Pb	As	Mg	Ti	Bi	Mo	Cd	Cu	Ba	Co	Mn
	0.000005	0.00001	0.00005	0.00005	0.000005	0.00001	0.00001	0.000005	0.000007	0.00001	0.000005	0.000005
99.99 PT74-TBSW2	Fe	Ca	Be	Sn	Al	Ni	Zn	Sb	Pt	K	O	Na
	0.0001	0.00045	0.0001	0.0001	0.0001	0.0001	0.0001	0.0001	0.0001	0.0005	0.0040	0.0009
	Cr	Pb	As	Mg	Ti	Bi	Mo	Cd	Cu	Ba	Co	Mn
	0.0001	0.0001	0.0001	0.0001	0.0001	0.0001	0.0002	0.0001	0.0001	0.0001	0.0001	0.0001
99.95 PT74-TBW3	Fe	Ca	P	Sn	Al	Ni	N	Sb	Si	O	Pb	As
	0.005	0.003	0.001	0.0001	0.002	0.003	0.003	0.001	0.003	0.003	0.0001	0.002
	Mg	C	Bi	Mo
	0.002	0.005	0.0001	0.001
