Inconel Alloy Stockist and Supplier

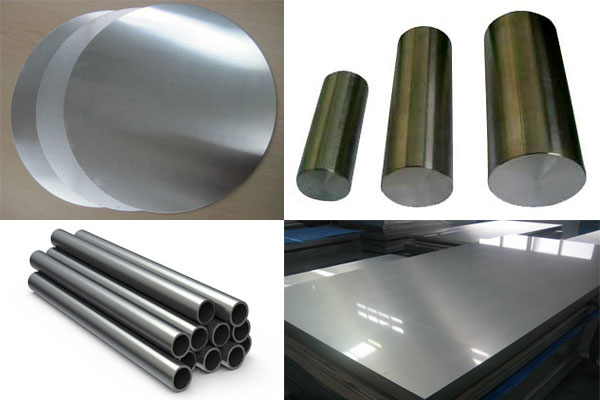

Shree Sambhav Alloys supplies Inconel composites 600, 601, 625 and 718 as Plate, Sheet, Bar, Wire, Pipe, Tubing, Pipe Fittings, Flanges and so on.
Inconel alloys are oxidation and corrosion resistant materials well suited for service in extreme environments subjected to pressure and heat. When heated, Inconel forms a thick, stable, passivating oxide layer protecting the surface from further attack. Inconel retains strength over a wide temperature range, attractive for high temperature applications where aluminum and steel would succumb to creep as a result of thermally induced crystal vacancies. Inconel's high temperature strength is developed by solid solution strengthening or precipitation hardening, depending on the alloy.
Features
- Incredible mechanical properties at both greatly low and to a great degree high temperatures
- Great imperviousness to acids, for example, sulfuric, phosphoric, nitric, and hydrochloric
- Extraordinary imperviousness to setting, hole consumption and intercrystalline erosion
- Completely free from chloride incited stress erosion splitting
- High imperviousness to oxidation at raised temperatures
Applications
- Flare stacks on seaward oil stages
- Contamination control gear
- Concoction and petrochemical preparing
- Parts where presentation to high mechanical anxiety and ocean water are required
- Gas turbines, rocket engines/motors, and space create
- Atomic reactors
Incoloy Alloy 286 Bar / Round
Incoloy A-286 is age-hardenable, iron-nickel-chromium superalloy appropriate for applications that require high tensile strength, oxidation resistance and corrosion resistance. Incoloy A-286 has high strength and corrosion resistance for temperatures up to 1300 °F (704 °C) and oxidation resistance up to 1800 °F (982 °C).
Alloy A-286 is designed for applications requiring high strength and good corrosion resistance at temperatures up to 1300 °F(704 °C). This alloy offers high ductility in notched sections. In fact, the notched rupture strength of alloy A-286 is superior to many other commercial alloys with comparable high temperature properties
An advantage of this alloy is that it can be precipitation hardened and strengthened by heat treatments. This makes possible a high degree of uniformity in developing maximum strength, which can be duplicated application after application.
Additionally, A-286 alloy is a austenitic stainless steel making it ideal for fastener applications, manifold components in the oil & has industry and also superchargers, jet engines and turbine components including:
Specification of Inconel Alloy :
Sizes : |
8MM DIA TO 500MM DIA |
Form : |
Square , Round , Hex , Flat, Wire In Black & Bright Finish |
Services : |
· Market leading prices |
Chemical Composition Limits of Inconel Alloy :
Weight% |
C |
Mn |
P |
S |
Si |
Cr |
Ni |
Mo |
Ti |
V |
Al |
B |
Co |
Cu |
A286 |
0.08 max |
2 max |
0.025 max |
0.025 max |
1 max |
13.5-16 |
24-27 |
1-1.5 |
1.9-2.35 |
0.10-0.50 |
0.35 max |
0.0003-0.010 |
1 max |
0.50 max |
